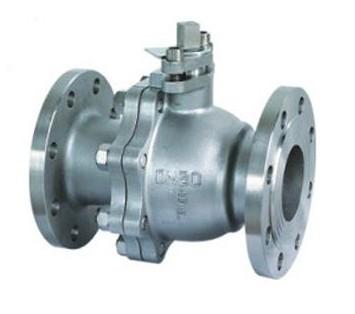

产品名称：Q41F不锈钢法兰球阀
所属系列：不锈钢球阀系列
主要外型尺寸Main outer Size
1.6MPa | DN | L | D | D1 | D2 | b | n-φd | H | D0 |
凸面法兰 Q41F Q41PPL 16C 16P 16R | 15 | 130 | 95 | 65 | 45 | 14 | 4-14 | 78 | 140 |
20 | 140 | 105 | 75 | 55 | 14 | 4-14 | 84 | 160 | |
25 | 150 | 115 | 85 | 65 | 14 | 4-14 | 95 | 180 | |
32 | 165 | 135 | 100 | 78 | 16 | 4-18 | 150 | 250 | |
40 | 180 | 145 | 110 | 85 | 16 | 4-18 | 150 | 300 | |
50 | 200 | 160 | 125 | 100 | 18 | 4-18 | 170 | 350 | |
65 | 220 | 180 | 145 | 120 | 20 | 4-18 | 195 | 350 | |
80 | 250 | 195 | 160 | 135 | 20 | 8-18 | 215 | 400 | |
100 | 280 | 215 | 180 | 155 | 20 | 8-18 | 250 | 500 | |
125 | 320 | 245 | 210 | 185 | 22 | 8-18 | 265 | 600 | |
150 | 360 | 280 | 240 | 210 | 24 | 8-23 | 270 | 800 | |
200 | 400 | 335 | 295 | 265 | 26 | 12-23 | 330 | 1200 | |
2.5MPa | 15 | 130 | 95 | 65 | 45 | 16 | 4-14 | 103 | 140 |
凸面法兰 RF Q41F Q41PPL 25 25P 25R | 20 | 140 | 105 | 75 | 55 | 16 | 4-14 | 112 | 160 |
25 | 150 | 115 | 85 | 65 | 16 | 4-14 | 123 | 180 | |
32 | 165 | 135 | 100 | 78 | 18 | 4-18 | 150 | 250 | |
40 | 180 | 145 | 110 | 85 | 18 | 4-18 | 156 | 300 | |
50 | 200 | 160 | 125 | 100 | 20 | 8-18 | 172 | 350 | |
65 | 220 | 180 | 145 | 120 | 22 | 8-18 | 197 | 350 | |
80 | 250 | 195 | 160 | 135 | 22 | 8-23 | 222 | 400 | |
100 | 280 | 230 | 190 | 160 | 24 | 8-23 | 253 | 500 | |
125 | 320 | 270 | 220 | 188 | 28 | 8-25 | 275 | 600 | |
150 | 360 | 300 | 250 | 218 | 30 | 8-25 | 286 | 800 | |
200 | 400 | 360 | 310 | 278 | 34 | 12-25 | 340 | 1200 |
